GRANULATORS

FML GRANULATORS

Granulators for the fine grinding of medium-large components coming from the injection moulding process, blowing and extrusion parts (pipes, profiles, plastic sheets) film (both loose and in reels) reels and termo-forming.

Download Product Data Sheet

ADVANCED DESIGN FOR EFFICIENCY AND OPERATIONAL SAFETY

Soundproof feeding hopper with guards to prevent material ejection outside, suitable for loading by conveyor belt

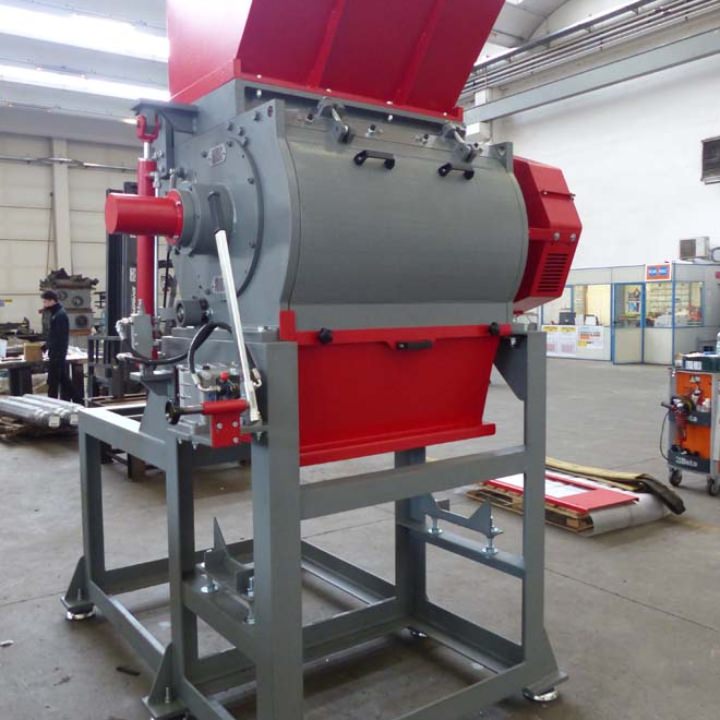

Cutting chamber made of quality steel plates assembled with screws and pins so that worn parts can be easily replaced
Spherical bearings with double row of rollers housed in supports constrained on the entire circumference to the grinding chamber with discharge groove and equipped with grease nipples
Provision for water cooling to the cutting chamber
Scissor cutting configuration achieved by tilting the rotating blades toward the counter-blades
Hardened (58/59 HRC) chrome steel k110 blades and counter-blades, ground and micrometrically adjustable

special steel blades

steel frame

interchangeable sorting screen

hydraulic openings

IDEAL FOR THE TREATMENT OF THESE MATERIALS

Plastic recycling

Recycling of electric cables and motors

CUTTING PRECISION AND EASY MAINTENANCE

Bench-adjustable blades and counter blades with jig to always maintain the best cutting conditions and optimum distance between blades and between rotor blades and screen, as well as reduced replacement time
Reversible sorting screen with large discharge area, mounted in a screen holder cradle that makes it easy to clean and replace
Massive flywheel attached to the rotor shaft with expansion locknuts that ensure reliable clamping over time
Funnel-shaped, removable grinded collection container prepared for connection to suction system
Support base made of sturdy steel sections mounted on vibration-damping devices

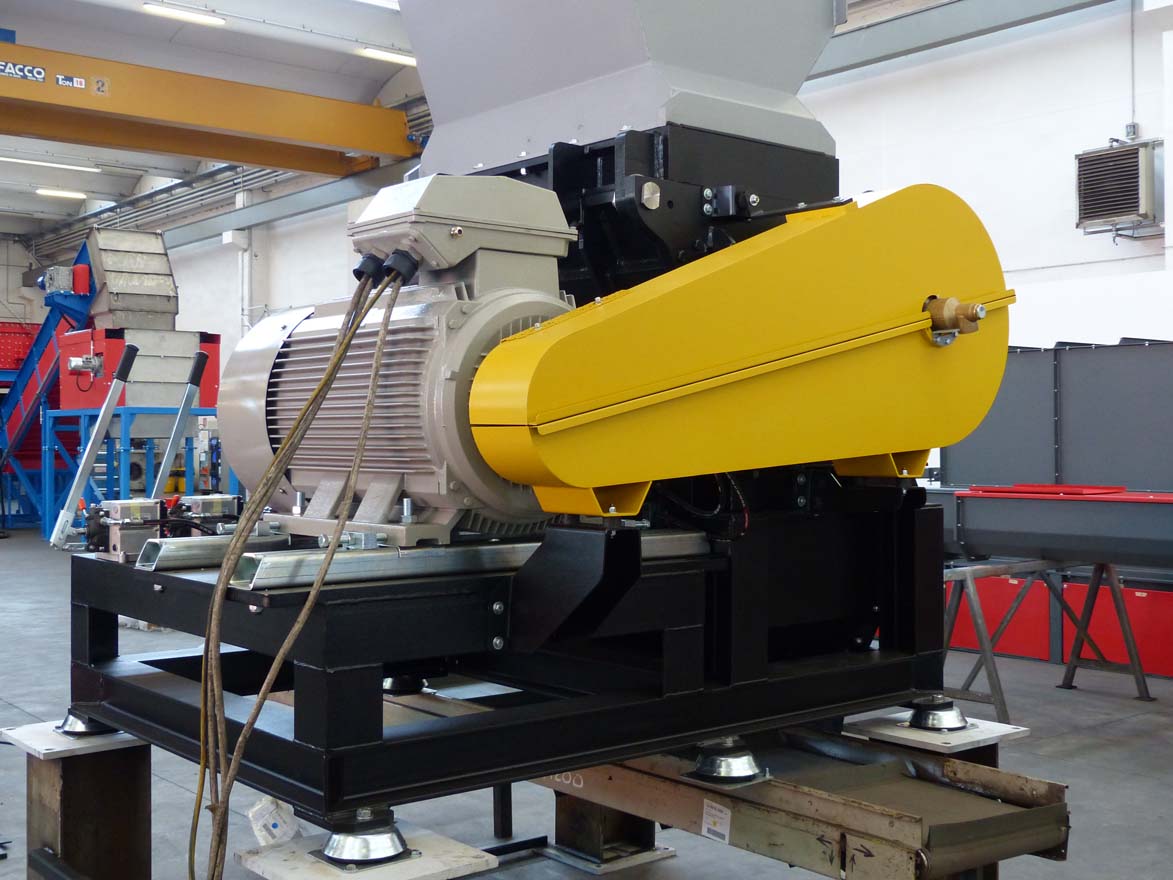

Electric motor with star delta starting – trapezoidal drive belts

simplicity of maintenance

ideal for refining materials and preparation for subsequent treatment

automatic openings

rotor cooling system

All Models

FML 60-45

Rotor length: 600 mm
Version: electric
Rotor: open or closed
Rotor size: Ø500 L600 mm
Motor: 30 kW / 37 KW
Rotating blades: 3 / 5 / plate rotor
Blades: standard
Applications:

Medium to large scraps from injection molding process
Medium to large scraps from blow molding process
Extrusion parts (tubes, profiles, plates, purges)
Film in bulk or on reels
Thermoforming coils

FML 90-45

Rotor length: 900 mm
Version: electric
Rotor: open or closed
Rotor size: Ø500 L900 mm
Motor: 37 kW / 45 KW
Rotating blades: 3 / 5 / plate rotor
Blades: standard
Applications:

Medium to large scraps from injection molding process
Medium to large scraps from blow molding process
Extrusion parts (tubes, profiles, plates, purges)
Film in bulk or on reels
Thermoforming reels

FML 120-45

Rotor length: 1200 mm
Version: electric
Rotor: open or closed
Rotor size: Ø500 L1200 mm
Motor: 45 KW
Rotating blades: 3 / 5 / plate rotor
Blades: standard
Applications:

Medium to large scraps from injection molding process
Medium to large scraps from blow molding process
Extrusion parts (tubes, profiles, plates, purges)
Film in bulk or on reels
Thermoforming coils
