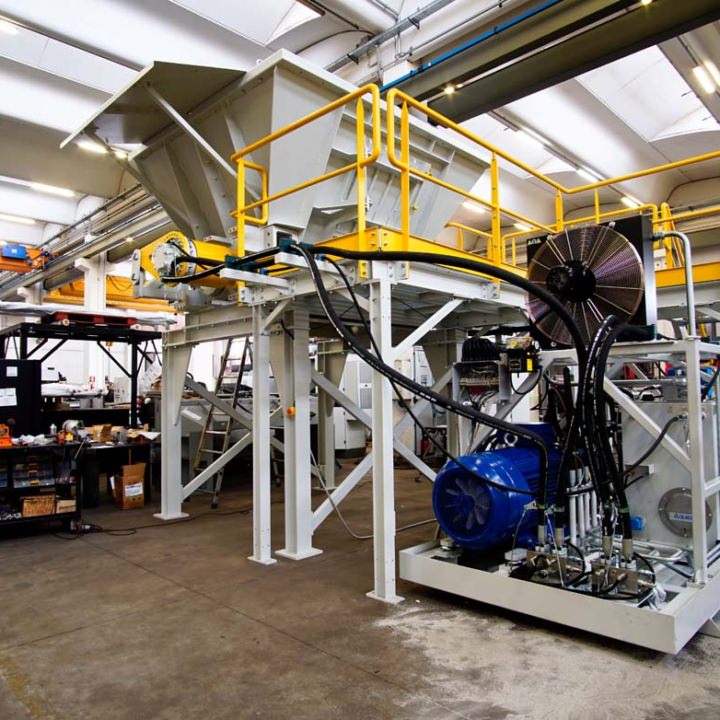

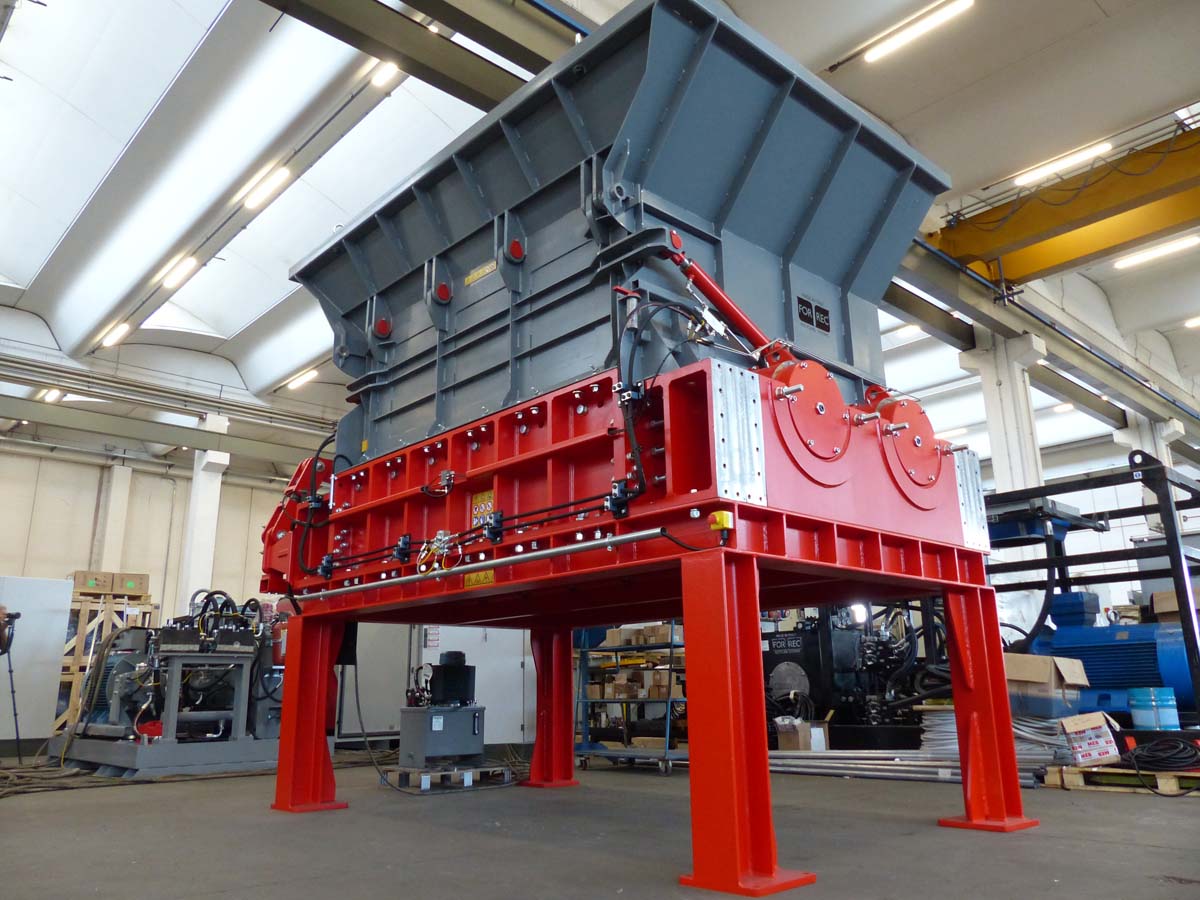

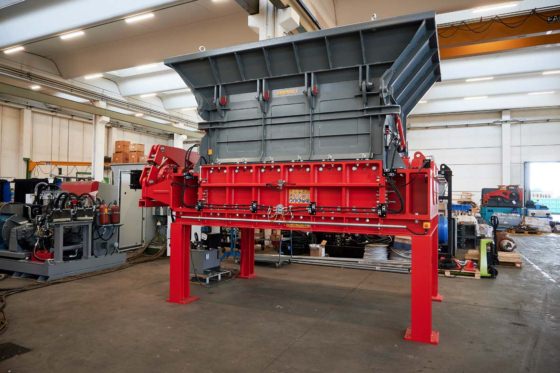

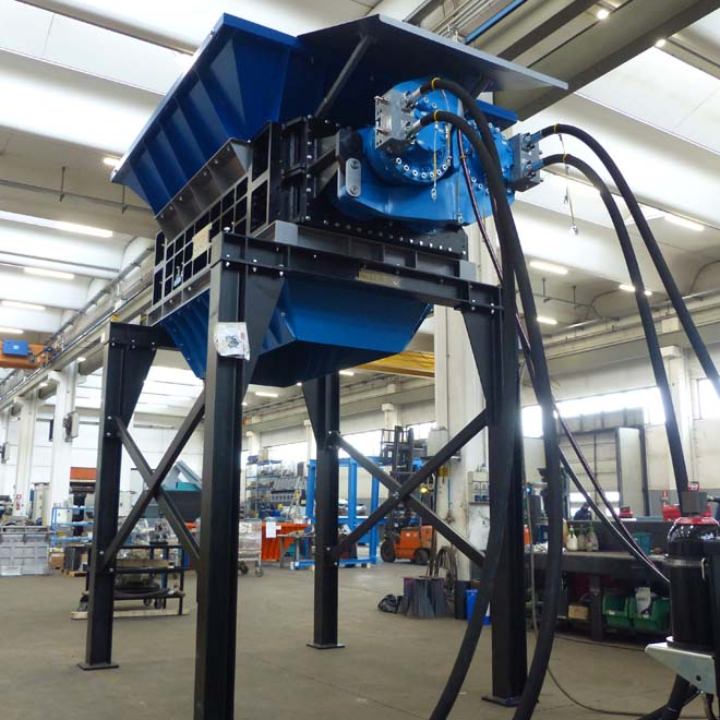

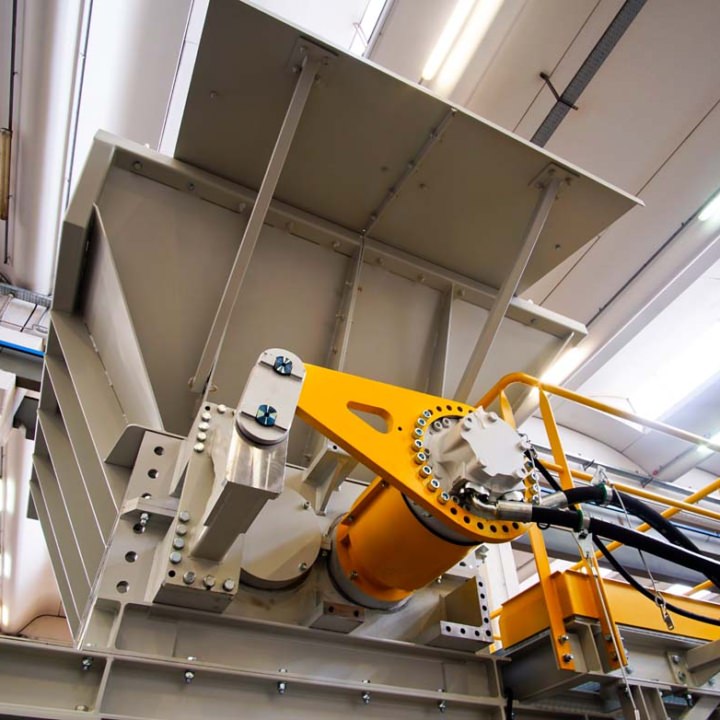

Multi-crusher FR series, designed for the treatment of municipal solid waste, bulky waste, industrial waste and for baled and bulk materials.
The shaft rotation cycle is PLC-controlled and allows high quantities of material to be processed, without the need to install additional options.
The FR multi-crusher is available in different models and sizes. Depending on the size and quantity of the material processed, you can choose the model best suited to your processing needs and space requirements.
Overall dimensions: 1500 x 3200 x 600 mm (hopper and support structure excluded)
Version: hydraulic
Cutting chamber dimensions: 964 x 1000 mm Blades: standard welded on shaft
Weight: 4 tons (hopper and support structure excluded)
Blade thickness: 50 mm
Motorisation: 2 x 15 kW
Applications:
Overall dimensions: 1500 x 3700 x 600 mm (hopper and support structure excluded)
Version: hydraulic
Cutting chamber dimensions: 964 x 1260 mm Blades: standard welded on shaft
Weight: 4.5 ton (hopper and support structure excluded)
Blade thickness: 50 mm
Motorisation: 2 x 22 kW
Applications:
Overall dimensions: 1500 x 3500 x 685 mm (hopper and support structure excluded)
Version: hydraulic
Cutting chamber dimensions: 1690 x 1045mm
Blades: standard welded on shaft
Weight: 7 ton (hopper and support structure excluded)
Blade thickness: 60/80 mm
Motorisation: 1 x 160 kW
Applications:
Overall dimensions: 1705 x 3900 x 780 mm (hopper and support structure excluded)
Version: hydraulic
Cutting chamber dimensions: 1890 x 1245mm Blades: standard welded on shaft
Weight: 10 ton (hopper and support structure excluded)
Blade thickness: 60/70/100 mm
Motorisation: 1 x 250 kW
Applications:
Overall dimensions: 2155 x 4510 x 780 mm (hopper and support structure excluded)
Version: hydraulic
Cutting chamber dimensions: 2500 x 1695 mm
Blades: standard welded on shaft
Weight: 13 ton (hopper and support structure excluded)
Blade thickness: 80/100 mm
Motorisation: 1 x 315 kW
Applications:
Overall dimensions: 2260 x 5080 x 4160 mm
Version: hydraulic
Cutting chamber dimensions: 2500 x 1100 mm
Blades: standard welded on shaft
Weight: 20 ton
Blade thickness: 80/100 mm
Motorisation: 1 x 160 kW
Applications:
Find out how we can help you with the shredding of a specific material. One of our experts will contact you to arrange a free consultation, a visit to a company using a FOR REC shredding plant, or a no-obligation site inspection.
