Hammers Mills

Hammers mill Z16

Hammer mills are designed to grind various types of materials, reducing the product into small-sized fragments.

Download Product Data Sheet
Hammers mill Z16

The FOR REC hammer mill model Z16/1500 stands out for its robust structure and the speed with which worn components can be accessed.

Special steel hammers
Steel structure
Interchangeable selection screen
Hydraulic openings
Customizable hammers
Inverter for motor speed control
z16-macchina-mulino-a-martelli-forrec

The main advantages of the Z16 Hammer Mill by FOR REC

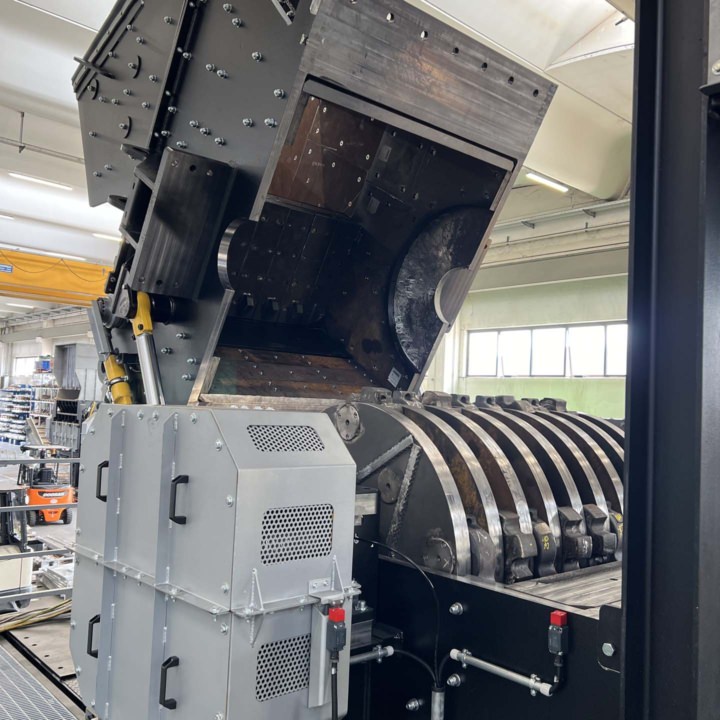

  • Hydraulic opening of the upper part of the chamber
  • Hydraulic lifting of the rotor by opening the upper casing
  • Hydraulic system for ejecting foreign objects through a dedicated door
  • Sectioned grid locked by the upper part of the chamber
  • Customizable hammers in terms of type, thickness, and number
  • Adjustable mobile casing for greater flexibility
  • Special anti-vibration mounts positioned on the machine’s support structure to reduce stress
P1150284
robustness
variable speed rotor
rotor reversing thanks to double pulley
automatic ejection of unshreddable materials
double anvil for more refining
size control

All Models

Overall dimensions: 4700 x 3400 x H2500 mm
Blades: interchangeable armor
Rotor dimensions: L1500 – Ø1000 mm
Hammer thickness: 70 mm
Weight: 41000 Kg
No. of hammers: 20
Motorization: 450 kW
Applications:

  • Aluminum Motors
  • Electric Motors
  • Ferrous and nonferrous metals
  • WEEE
Z16-1500
