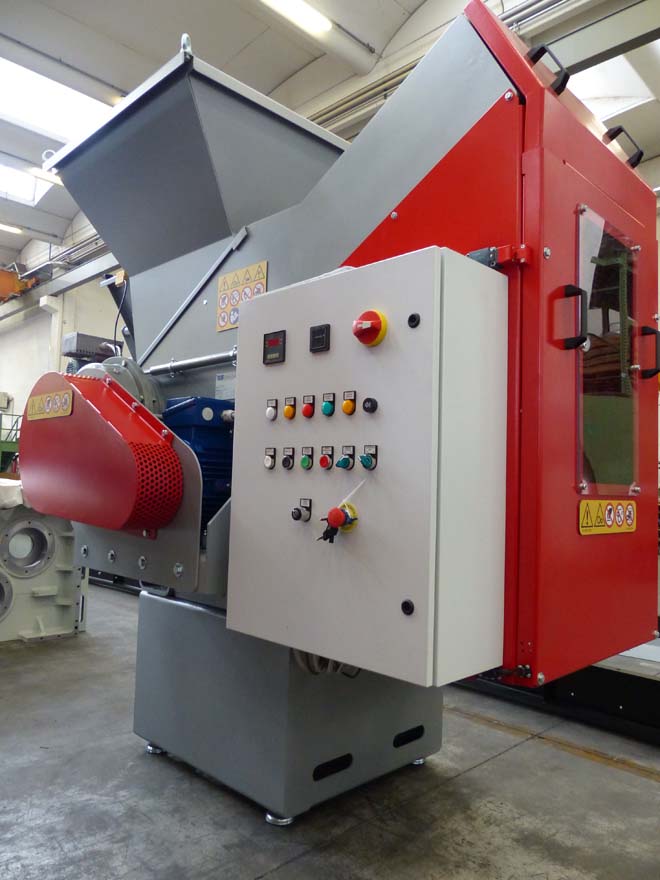

The AE grinder is a compact and durable machine for pre-grinding electronic boards, electrical cables and plastics. The machine provides precise granulation and prepares the material for further processing.
The FOR REC AE600 grinder proves its reliability not only in recycling plastics, but also in processing wood, paper, cables and electric motors.
The machine finds the technology of large single-rotor machines applied in the simplicity of a small machine.
This FOR REC grinder works with an installed power from 15 to 75 kW and is designed to be able to achieve a calibrated output, thanks to the screen that defines the size of the output material.
Overall dimensions: 2177 x 2217 mm H=2063 mm
Version: electric
Blades: standard

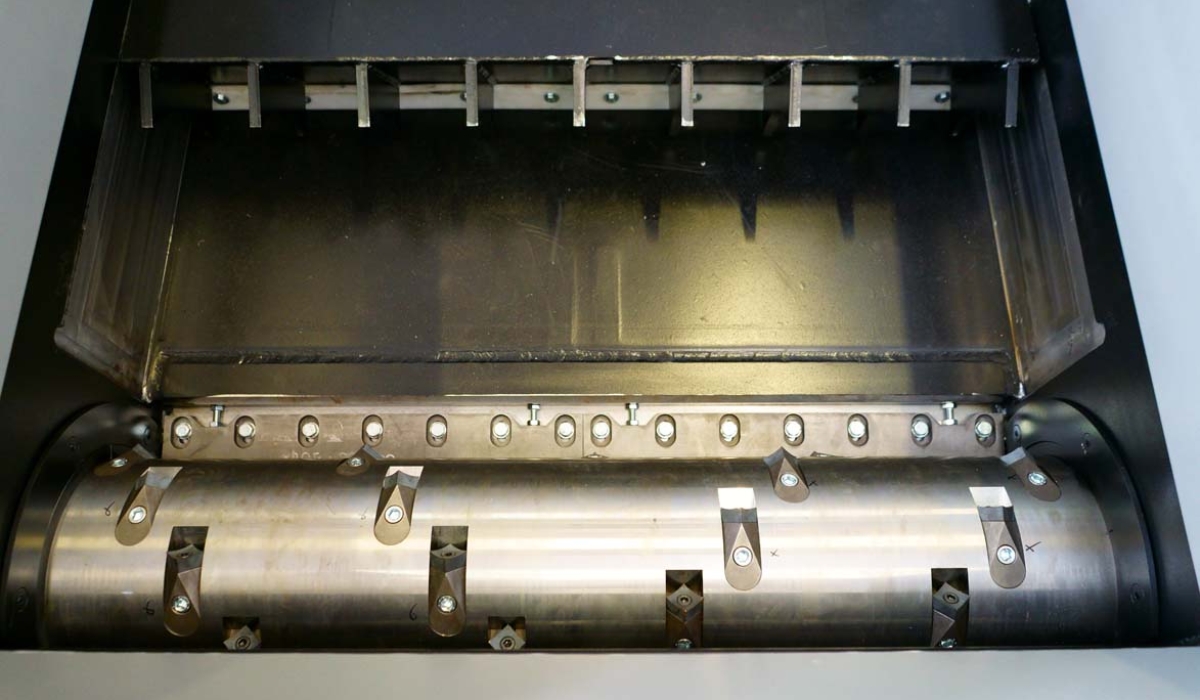

Rotor dimensions: L625 mm – Ø215
Plate size: 30 x 30 mm
Weight: 1700 kg
No. of plates: 18
Motorization: 1 x 15 kW / 1 x 30 kW
Grid: 25 mm to 50 mm
Applications:
Overall dimensions: 2250 x 1600 mm H=2100 mm
Version: electric
Blades: standard
Rotor dimensions: L625 mm – Ø215
Plate size: 30 x 30 mm / 43 x 43 mm
Weight: 2020 Kg
No. of plates: 27/11
Motorization: 1 x 30 kW
Grid: customizable
Applications:
Overall dimensions: 3500 x 2650 mm H=2660 mm
Version: electric
Blades: standard
Rotor dimensions: L1225 mm – Ø350
Plate size: 43 x 43 mm
Weight: 5000 kg
No. of plates: 42
Motorization: 1 x 75 kW
Grid: customizable
Applications:
Overall dimensions: 3500 x 2650 mm H=2660 mm
Version: electric
Blades: standard
Rotor dimensions: L1225 mm – Ø350
Plate size: 43 x 43 mm
Weight: 5000 kg
No. of plates: 42
Motorization: 1 x 75 kW
Grid: customizable
Applications:
Find out how we can help you with the shredding of a specific material. One of our experts will contact you to arrange a free consultation, a visit to a company using a FOR REC shredding plant, or a no-obligation site inspection.
