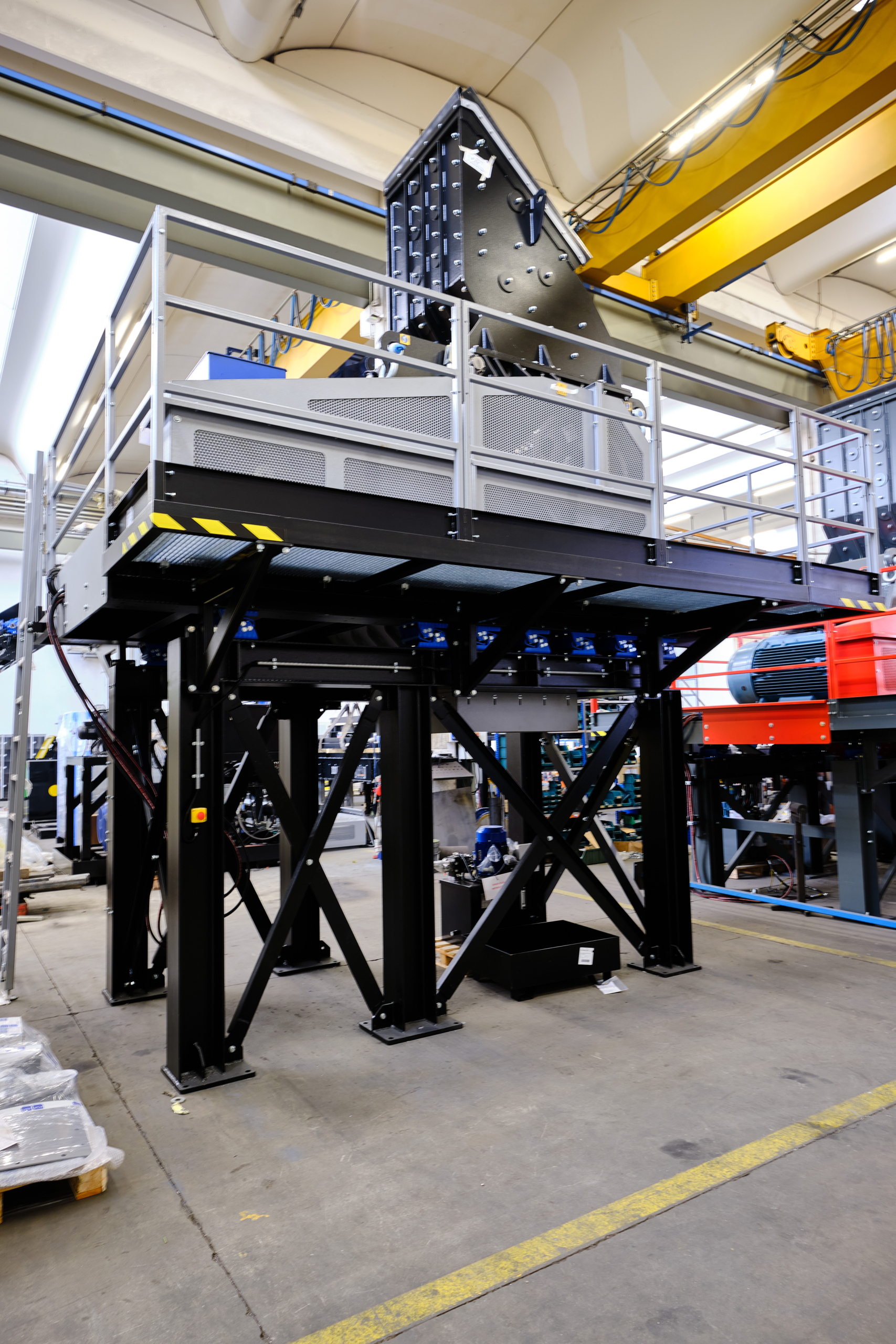

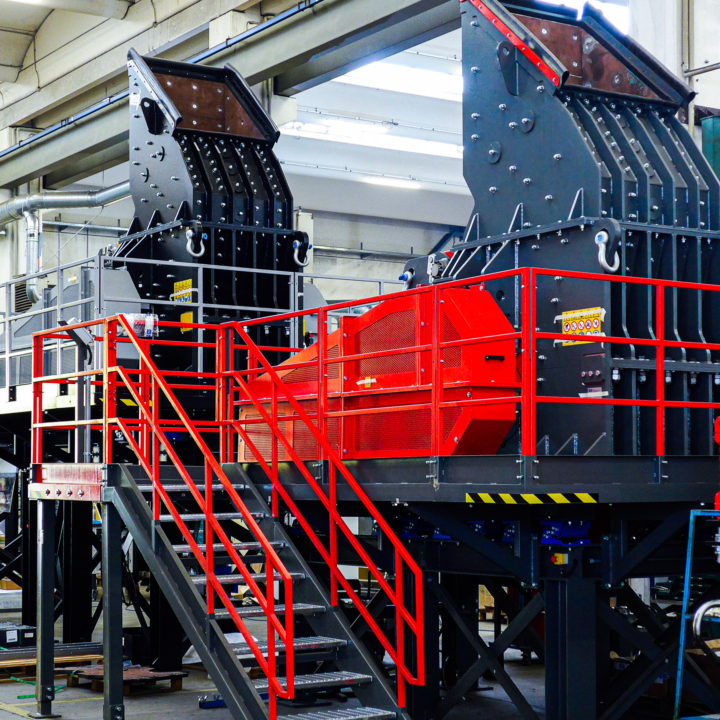

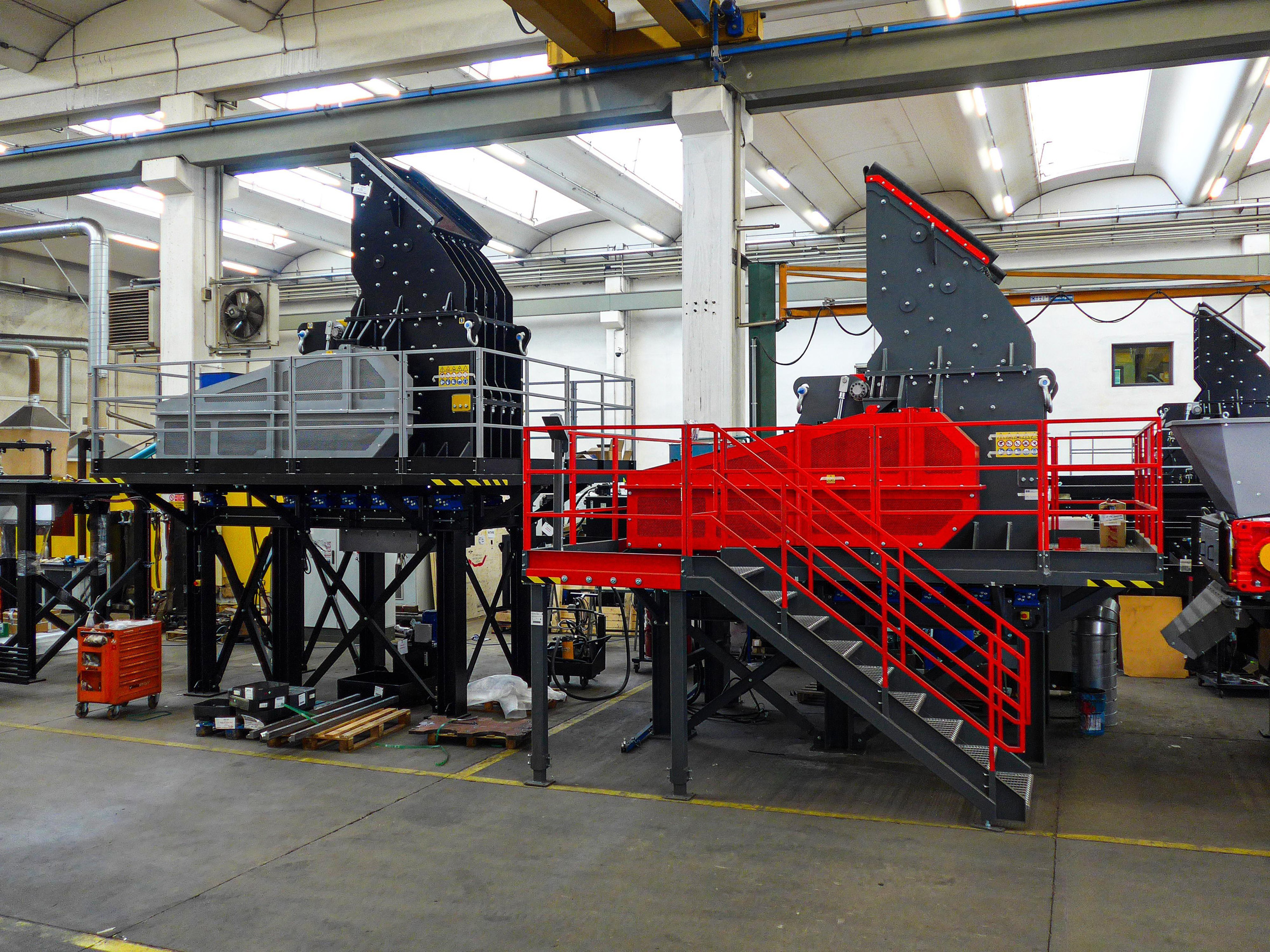

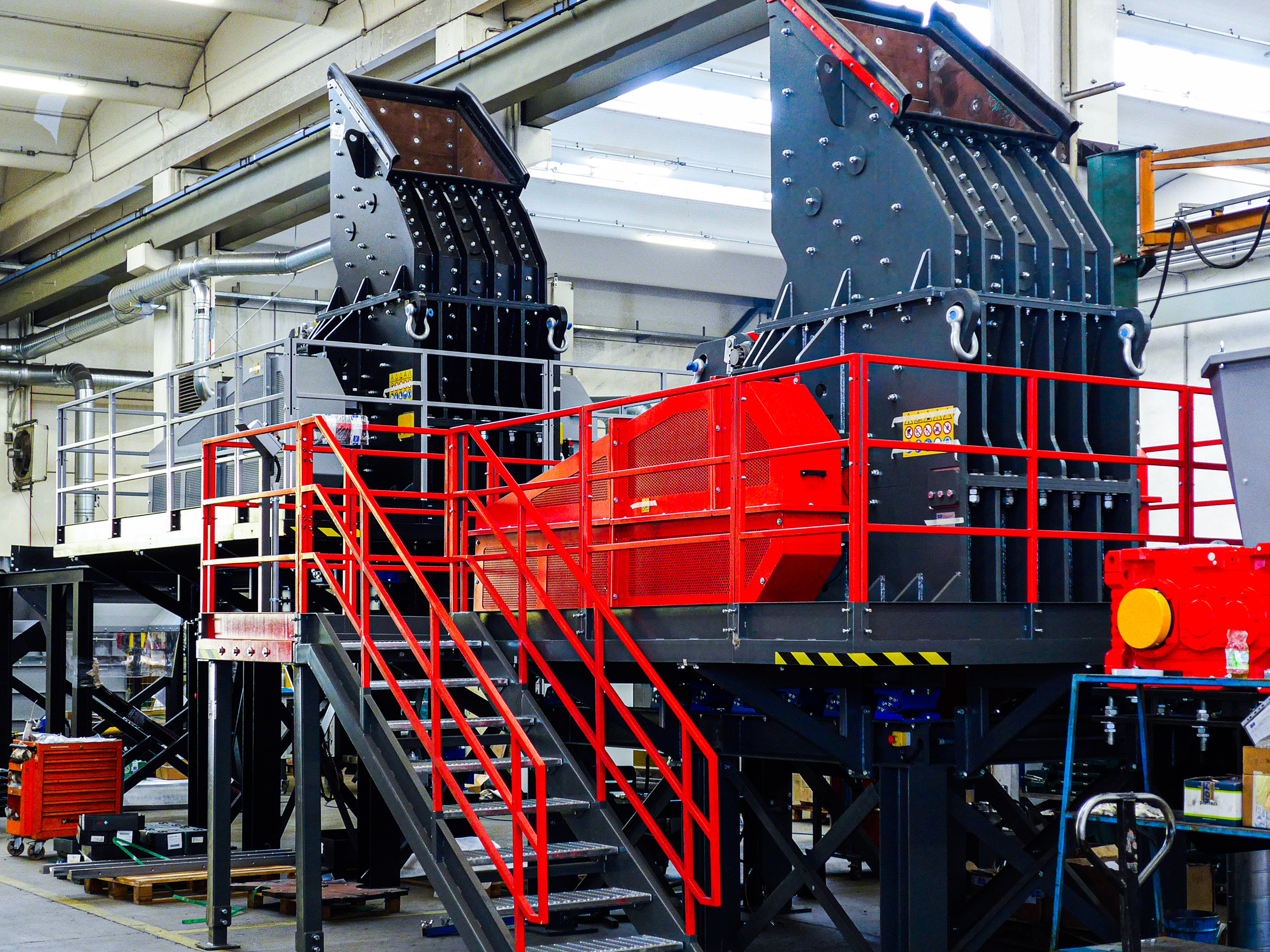

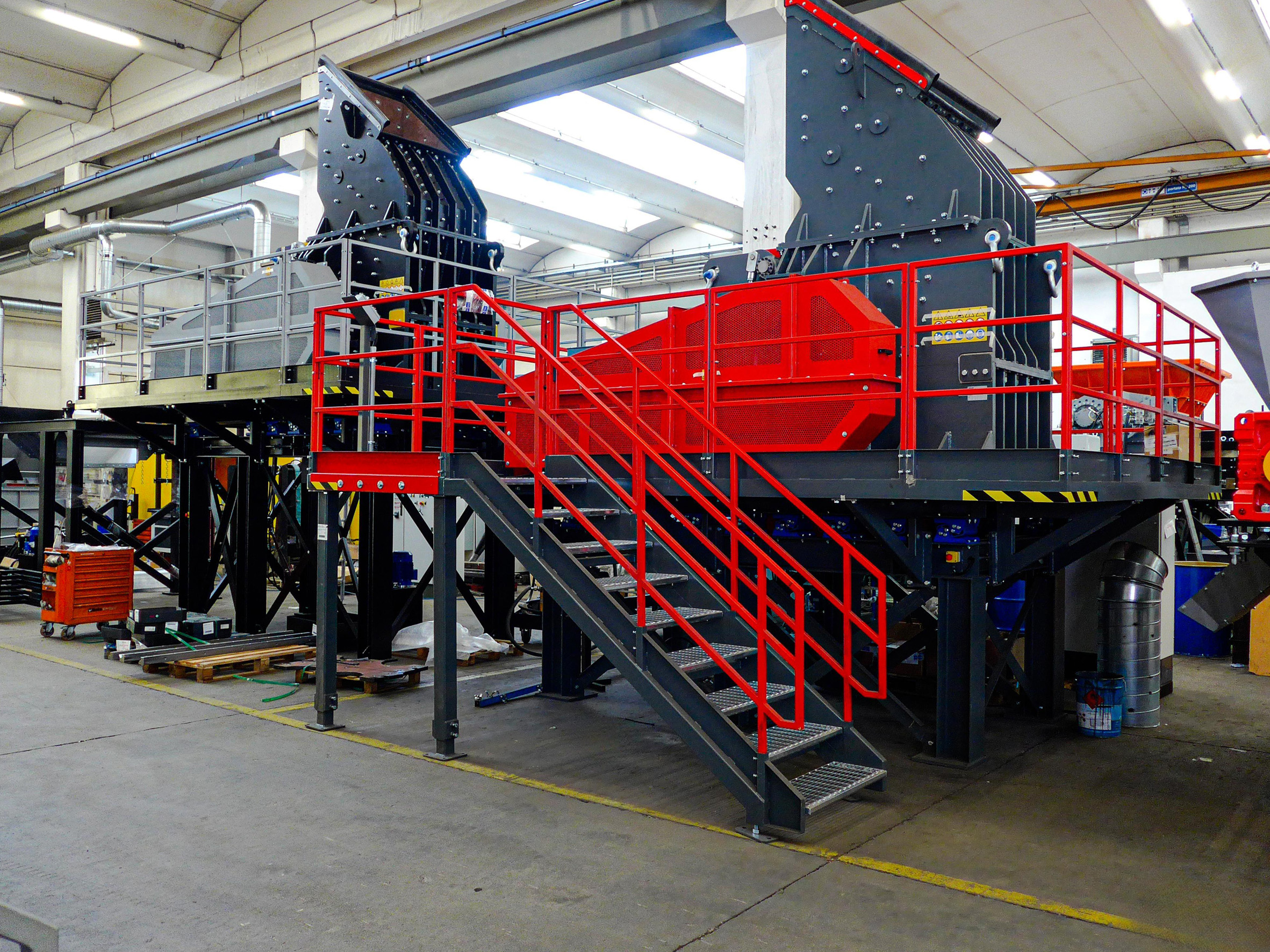

Hammers mill Z15

The Z15 hammer mills ensure efficient crushing of heterogeneous materials, transforming them into small-sized fragments, with easy access to wear components and customizable options to maximize performance.

Download Product Data Sheet
Hammers mill Z15

Versatile Grinding and Customizable Features

Hammer mills enable the grinding of heterogeneous materials and the transformation of the processed material into smaller fragments.

special steel blades
steel structure
interchangeable sorting screen

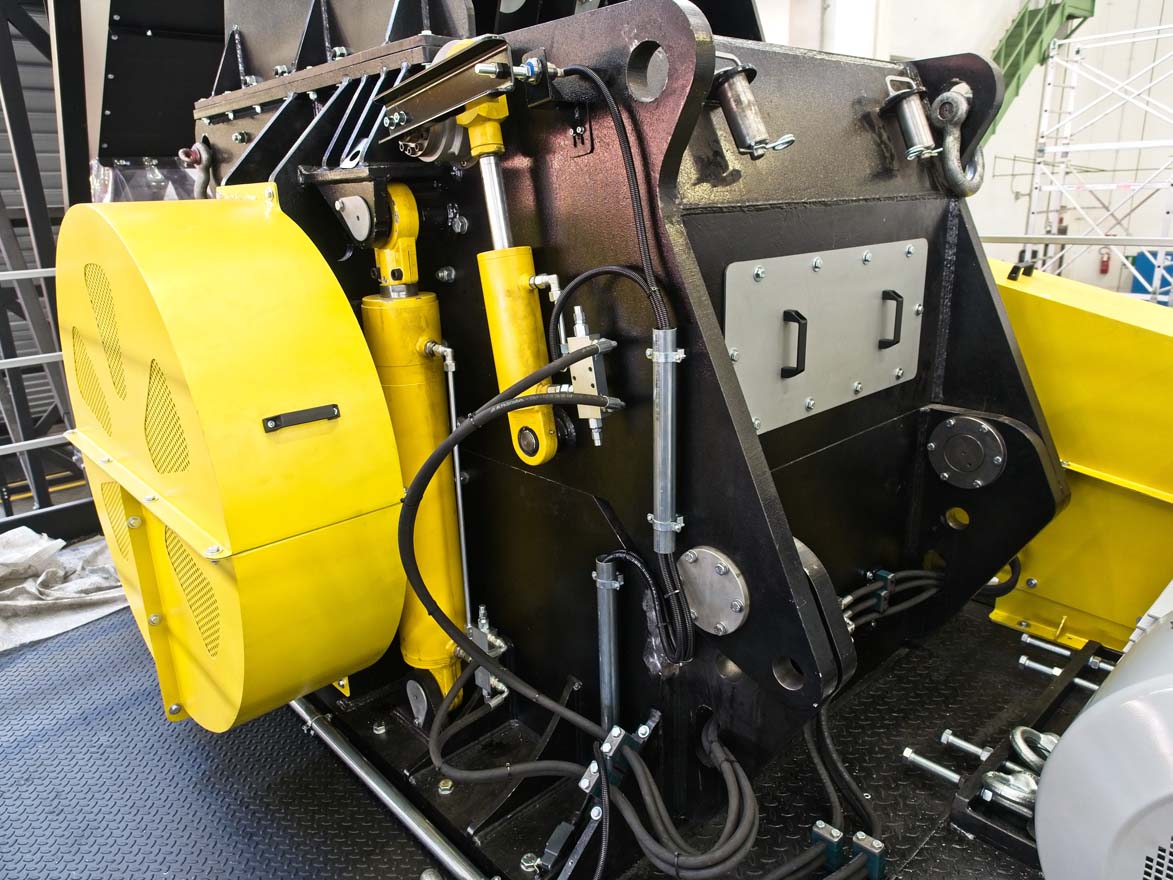

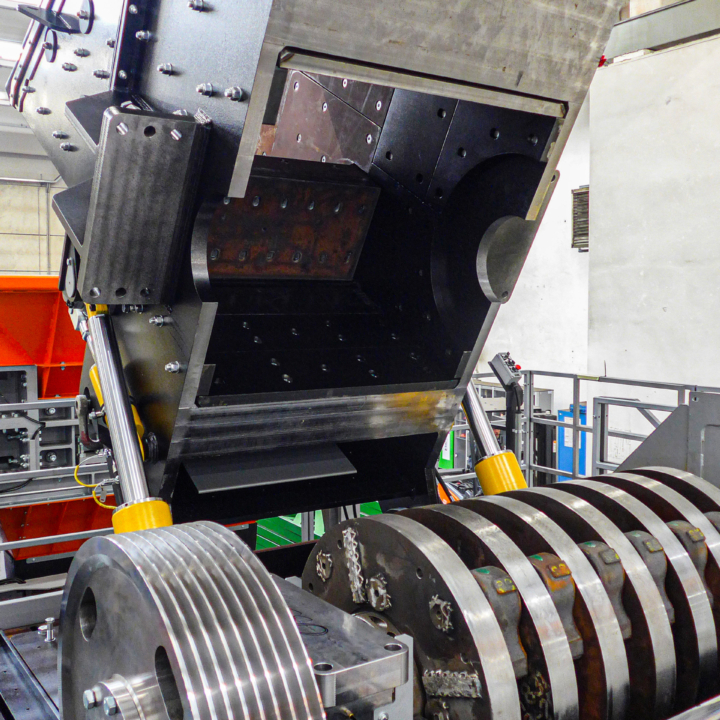

hydraulic openings
customizable hammers
inverter for rotor rpm control

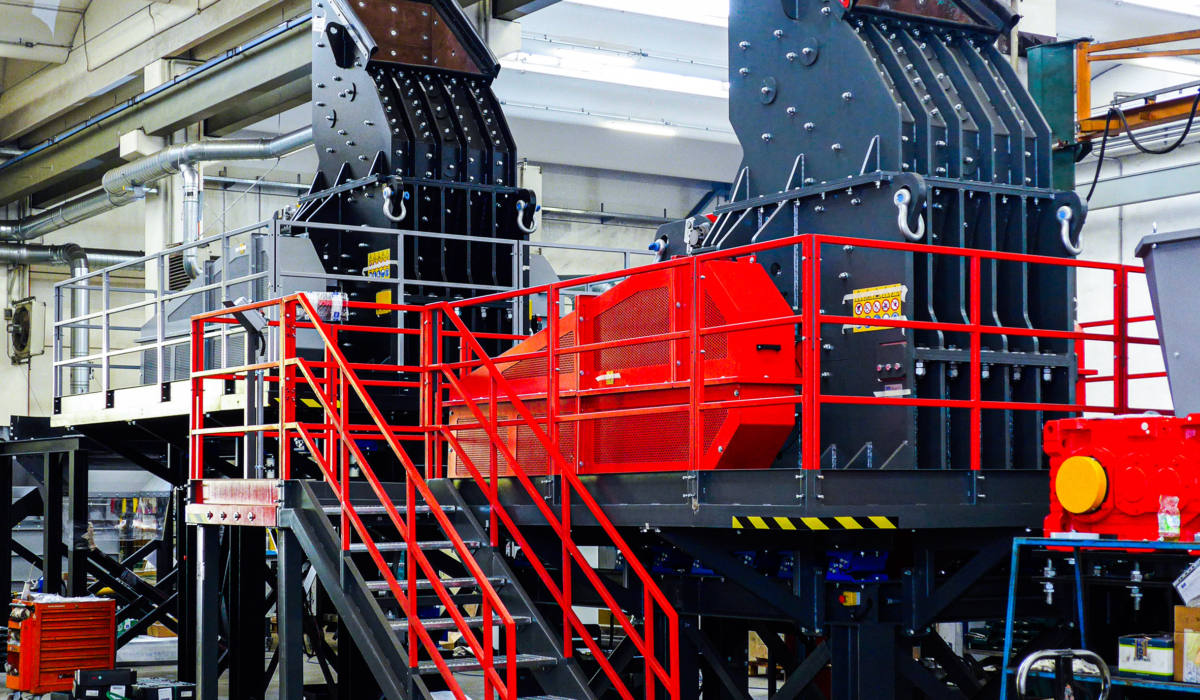

Hammers mill Z15

Ideale per il trattamento di questi materiali

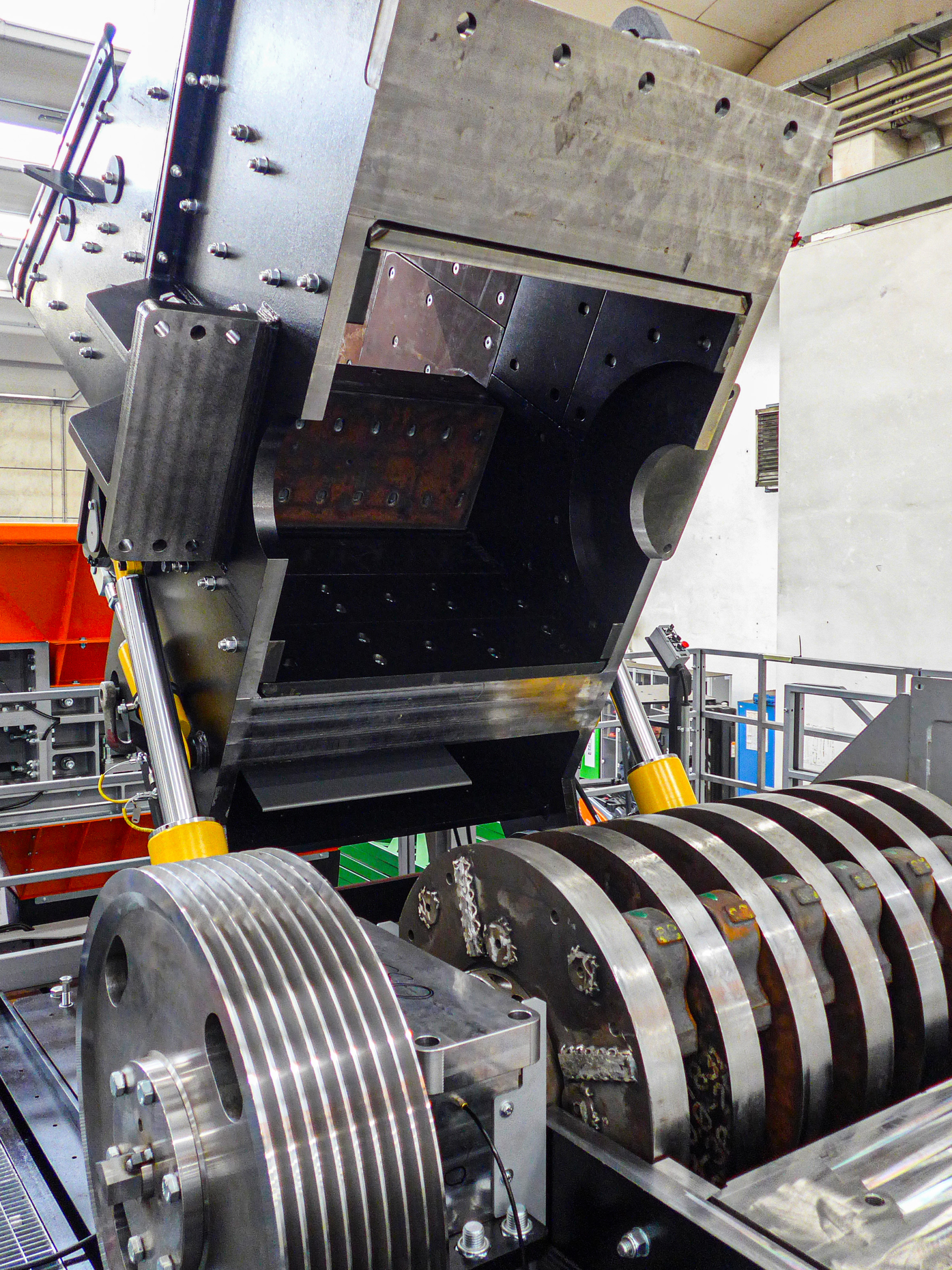

Solid Structure and Quick Wear Part Access

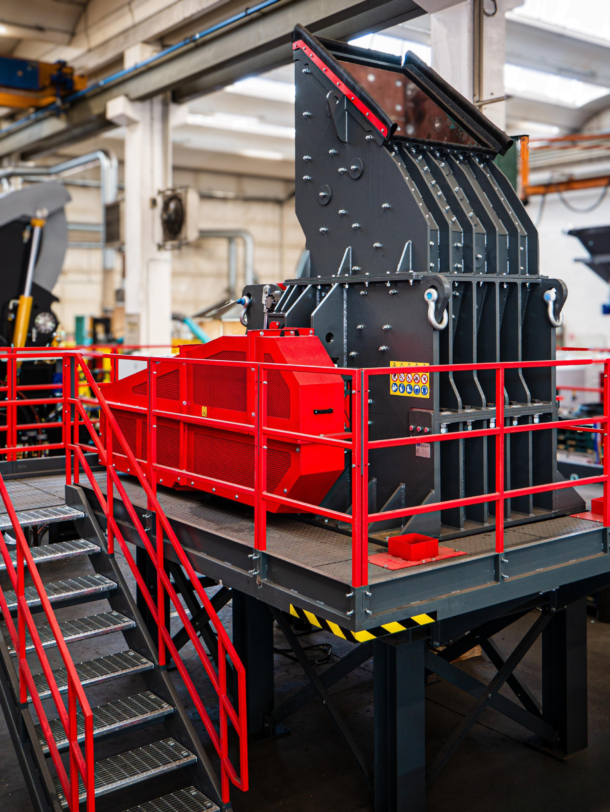

The FOR REC mod. Z15/1000 hammer mill stands out for its solid and durable structure as well as its quick access to wear parts. This feature significantly reduces maintenance time, enhancing operational efficiency and minimizing downtime, ensuring high performance even in the most demanding applications.





Hammers mill Z15
robustness
variable-speed rotor
rotor reversal thanks to the double pulley
automatic ejection of unshreddable materials
double anvil for more refinement

All Models

Overall dimensions: 3800 x 2370 x H1856 mm
Version: electric
Blades: double hammer
Rotor dimensions: L1000 – Ø900 mm
Hammer thickness: 70 mm
Weight: 16500 kg
No. hammers: 24
Motorization: 200 kW / 250 kW
Applications:

  • Motors
  • Aluminum
  • Pre-shredded light metals
Z15-1000

View video of Hammer mill Z15-1000
